1.1. Version 3.1.4.0+ UCS Delivery system has features (set of changes) that enables easier configuration and better performance of software Delivery.
1.1.1. For previous versions see
1.2. Main changes from previous versions in 3.1.4.0+ are:
no configuration files (*.ini) for all modules of Delivery;
all configuration is made from R-Keeper 7 Managing station;
DLVServ loads configuration from RK7 (cash server XML-queries);
1.3. RK7 minimum version is 7.5.7.65.
1.4. You need to make sure that you have corrrect midas.dll version registered (9 and above).
Note: FireBird installer is included in Delivery installer.
Install Firebird Server 2.5 (32-bit only) on a computer that will run Delivery modules. Windows executable installer for full Superclassic/Classic or Superserver can be downloaded from official site : http://www.firebirdsql.org/en/firebird-2-5-2/).
To ensure that services and libraries registered correctly in 64-bit OS run Firebird installer with Administrator rights!
On Windows 7 64-bit, if Gds32.dll library fails to load, make sure that library is located in C:\Windows\SysWOW64\. If not, copy fbclient.dll file from Firebird installation folder (../Firebird/Bin/) to C:\Windows\SysWOW64\ folder and rename it to Gds32.dll.
Note: FireBird 3.0 is not supported!
Included in Delivery installer. If you want to reinstall DBExpress driver download DbExpressInstallation.7z from ftp://ftp.ucs.ru/Delivery/RK7.
Download CinemaUF.dll.zip from ftp://ftp.ucs.ru/Delivery/PK7, unpack and copy CinemaUF.dll to UDF folder of your FireBird installation (usually c:\Program Files (x86)\Firebird\Firebird_2_5\UDF).
It is recommended to check if Borlndmm.dll is located in OS system folder.
For 32-bit OS: C:\Windows\System32\.
For 64-bit OS: C:\Windows\SysWOW64\.
2.1.5.1. Choose correct character set fits your language on installation and configuration.
2.1.5.2. Do not set "UTF8" (causes errors), choose "NONE" for multiple language use.
Note: restart reference server after changing its XML port.
Go to Service -> Interfaces, create new interface for Delivery and bind it to cash server XML interface.
Note: reboot cash server after adding/changing interfaces.
This cash station will be used on the same workstation that runs Dispatcher and Operator modules.
Create new cash station and choose "Crippled version (delivery)" in Station type parameter. If that station type is unavailable then enable "Use Delivery" option in Options -> Parameters ->Enterprise working settings.
Add new XML interface and port to cash station. Create new interface and bind it to this cash station XML interface as in pt. 2.2.

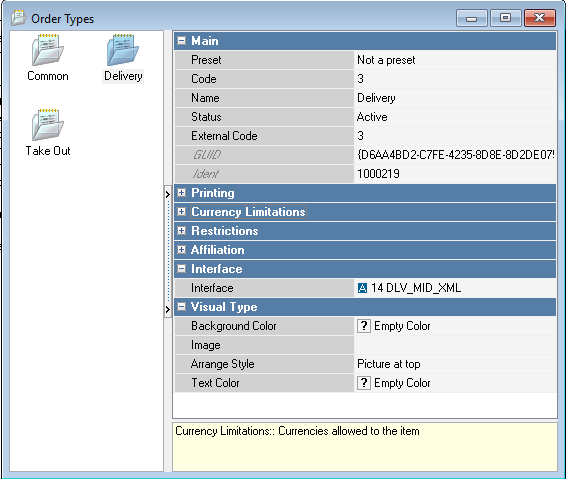

Create new order type for Delivery and tie it to order category (checkbox) that will be used with Delivery.
Go to Service -> Operations -> User operations, find operation with Ident = 920 and rename it to "Order status change", tick "Access control" checkbox. Then edit Delivery user role accordingly (checkbox).
If usage of service print is not intended then configure service print for "No print" printer.
Create new software classifier for Delivery in CRM card editor (RKeeper_CRM_Manager.exe). This classifier will be used in RK7 delivery plugin configuration.
Download Delivery installer from ftp://ftp.ucs.ru/Delivery/Rk7 and run it as Administrator. Follow next steps:
Set up Reference server and Cash server XML interfaces parameters as they were configured previously in pt. 2.1 and pt. 2.2. Choose Delivery instance name and installation folder.
Select components to install. Choose name for Delivery configuration (RK7 delivery plugin). Make sure that XML-Editing role in RK7 has "System configurations" privilege.
Choose Delivery database folder and database credentials. Set up Delivery server settings (port will be used in RK7 delivery plugin configuration). Set up cash station settings as they were configured previously in pt. 2.3 and choose interface for CRM that RK7 uses..
Fill in CRM connection parameters (set classifier as in pt. 3). Choose shortcuts to create then click "Install". Finish installation.
Installation is now finished.
Verify RK7 delivery plugin configuration as described in pt. 1 of Manual installation section below.
3.2.1. Open rk7man.exe and go to Service -> Plugin configurations (reference in RK7 manager station) and choose root group "Delivery".
3.2.1.1. Create a new plugin (or choose previously created with installer). "Name" must be exactly the same as in DLVServ.exe.
3.2.1.2. Edit its properties (open Basic -> Settings).
3.2.1.3. You need as many plugin configurations as many Delivery servers you do install.
3.2.1.4. Following parameters MUST be set and checked:
3.2.2. Download distributive from ftp://ftp.ucs.ru/Delivery/RK7.
3.2.3. Unpack it and copy to destination folder.
3.2.4. Run DLVServ.exe with /desktop parameter and set up server parameters
3.2.4.1. Select "Delivery configuration" (RK7 delivery plugin configuration).
3.2.4.2. port must be the same as in RK7 delivery plugin configuration
3.2.4.3. Delivery server name must be set unique.
3.2.5. Settings are saved to registry HKEY_LOCAL_MACHINE\SOFTWARE\UCS\DELIVERYRK7\ + [delivery server name]
4.1. Make sure Guardant Key is installed on computer.
4.2. Issue Delivery sofware licenses (RK7 Delivery Operator, RK7 Delivery Dispatcher, RK7 Delivery Expeditor) for your object at l.ucs.ru.
4.3. Run Delivery server (DLVServ.exe) with /desktop parameter and fill in following fields:
Object - full code of your object.
Key - choose your Guardant key for Delivery.
Request code - press button to generate request code for license.
4.4. Copy request code and generate a license code with it at l.ucs.ru in object info page. Enter license code in "License" field.
Expiry date and Quantity fields will be filled automatically after entering license code.
5.1. Run Delivery server (DLVServ.exe) with /desktop parameter. You can install Delivery server as a system service with distinct name by using following command: DLVServ.exe -install -NAME:service name.
To uninstall delivery server from system services run following command: DLVServ.exe -uninstall -NAME:service name.
5.2. Run Operator module (Operator.exe) with /desktop parameter. Operator module will automatically run Dispatcher and Operator modules and cash station. If they do not start automatically with Operator then check their correct paths in Programms pathes section of RK7 delivery plugin configuration.
To upgrade from previous versions you need to do following steps:
install new Delivery instance
upgrade DB to ver. 3.1.3.154 (if upgrading from 3.1.3.154 simply copy DB to new installation)
Note: below is table of parameters for .ini and plugin configuration.
| Section | Block / Commentary | .ini parameter | type | Value | RK7 plugin parameter | Description |
|---|---|---|---|---|---|---|
| DeliveryDB | Delivery database | |||||
| stDBServer | string | ..\DELIVERYRK7.FDB | Path | Full path to delivery database | ||
| stDefCharSet | dbcharsets | WIN1251 | CharSet | Character set for delivery database | ||
| dbuname | string | SYSDBA | User name | Delivery database user name | ||
| dbpass | string | masterkey | Password | Delivery database password | ||
| CSServer | RKeeper CRM | |||||
| stCSServer | string | 127.0.0.1 | Rkeeper CRM Server IP | IP address of RKeeper CRM Server | ||
| inCSPort | tcpport | 9191 | Rkeeper CRM Server port | Port of RKeeper CRM Server | ||
| stCSKey | string | 10 | Rkeeper CRM Server Classifier | Software Classifier Code Delivery from Rkeeper CRM | ||
| stCSUnit | string | 1 | Unit Code | Unit code for Station at Rkeeper CRM /Do not change! | ||
| stCSUser | string | 1 | User code | User code of RKeeper CRM / Do not change! | ||
| inCSGroup | integer | 2 | CRM Group | Group Rkeeper CRM | ||
| inAccountForCount | integer | 1 | CRM Account for count | CRM Account for count orders of client | ||
| boSendSMS | integer | 0 | SMS for order status | Send SMS for order status | ||
| boCanAppendStreet | boolean | 1 | allow to add street | Allow to add street | ||
| UseBlackList | boolean | 1 | Use blacklist | Use a blacklist for unscrupulous clients | ||
| boCanAppendCity | integer | 1 | allow to add city | Allow to add city | ||
| HaveSubway | integer | 0 | Use subway dictionary | Use subway dictionary | ||
| GiveCardToClient | integer | 0 | Give a card to client | Give a card to client | ||
| GiveActiveCard | integer | 0 | Give activated card | Give activated card | ||
| CardGroup | integer | 3 | Cards group ident | Cards group ident | ||
| DaysTillExpired | integer | 365 | Number of days till card will expire | Number of days till card will expire | ||
| DLVServer | Delivery server | |||||
| stAuthIP | string | 127.0.0.1 | Delivery Server IP | IP address of delivery server | ||
| inAuthPort | tcpport | 12314 | Delivery Server port | Port of delivery server | ||
| stBoundIP | string | Client ip | Client ip for connection to delivery server | |||
| RK7Cash | RK7 Cash stations | |||||
| stCashIP | string | 127.0.0.1 | Cash IP address | IP address of xml-interface for cash station | ||
| inXMLPort | tcpport | 2233 | Cash port | Port of xml-interface for cash station | ||
| xmlPass | Password for xml-interfase | Password for xml-interface of cash station | ||||
| inCSIdent | integer | 1000025 | Ident CRM interface | Ident of Rkeeper CRM for current cash station | ||
| RK7Order | RK7 Order | |||||
| stDLVExtSource | string | 21 | Idents delivery orders | Idents for delivery orders | ||
| stInetExtSource | string | 31 | Idents external orders | Idents for external orders(internet,virtual card....) | ||
| stAutoConfirmSource | string | Idents external orders for auto confirm | Idents for external orders for auto confirm(internet,virtual card....) | |||
| inrk7category | integer | 2 | Ident RK category | Ident RK category for delivery order | ||
| strk7table | integer | 19 | Ident RK Table | Ident RK Table for delivery order | ||
| inRK7AutoVoid | integer | Ident of order void | Ident of order void used for delete order at center | |||
| boCanEdit | boolean | 1 | Allow editing of the order | Allow editing of the order | ||
| tiDefWayTime | integer | 30 | Travel time | Travel time for delivery of the order by default | ||
| tiDefProdTime | integer | 15 | Ckooking time | Ckooking time for the order by default | ||
| boRestBeforeOrder | boolean | 1 | Restaurant before order | The restaurant must be defined before create order | ||
| boZoneBeforeOrder | boolean | 1 | Delivery zone before order | The delivery zone must be defined before create order | ||
| CalcWaitTime | TypeCalcWT | wtDefault | wait delivery time calculation type | type calculate the expected delivery time with addition | ||
| inMinsBeforeSendExp | integer | -1 | Minutes before send (expeditor) | Show orders in the "cooking" for x minutes before sending the forwarder (module "Expeditor") | ||
| boUseKitReadyOrder | boolean | 0 | Used cooking control orders | Used cooking control orders | ||
| boUseAccepted | boolean | 0 | Used status accepted | Used status accepted for orders on filial | ||
| boSendExpNow | boolean | 0 | Current date and time when sending | Current date and time when sending the order | ||
| boReturnExpNow | boolean | 0 | Current date and time when return | Current date and time when the return of the forwarder | ||
| boArchiveNow | boolean | 0 | Current date and time when finish | Current date and time when sending the order to archive | ||
| stOrderPrefix | string | Prefix for RK7 order | Prefix for RK7 order | |||
| boFiskSendExp | boolean | 0 | Send expeditor with fiscal receipt | Send expeditor with fiscal receipt | ||
| boAlwaysSMS | boolean | 0 | Mark SMS | mark "SMS" for a new phone | ||
| boCheckDLVRestWoking | boolean | 1 | Check timetable restaurants | Check the timetable restaurants | ||
| inMaxExpOrders | tcpport | 0 | Maximum quantity orders | Maximum quantity orders for the expeditor in one trip | ||
| inMaxExpMoney | int64Positiv | 0 | Maximum amount of money | Maximum amount of money in the hands of the forwarder | ||
| DLVTypes | Types of orders | |||||
| DeliveryType | integer | 100022 | For delivery order | Type of order for delivery order | ||
| TakeOutType | integer | 100023 | For takeout order | Type of order for takeout order | ||
| DefaultType | DLVTypes | 0 | Default order type | Default order type | ||
| DLVEmployee | Delivery employees | |||||
| OperatorRoles | ItemList | 100073 | Idents Operators | Idents of role for operators | ||
| DispatherRoles | ItemList | 100074 | Idents Dispatchers | Idents of role for Dispatchers | ||
| ExpeditorRoles | ItemList | 100075 | Idents Expeditors | Idents of role for Expeditors | ||
| inExpTakeOut | integer | 100084 | Expeditor for "Takeout" | Expeditor for "Takeout" order | ||
| CallerID | Caller | |||||
| boUseCallType | caller_id_type | cidNone | CallerID type | Type of caller id used | ||
| inCallPort | tcpport | 0 | TCP port for callerid | TCP port for callerid | ||
| stCountryCode | string | Cut characters | Cut first current characters | |||
| stPhonePrefix | string | Add characters | Add at the beginning to the phone number characters | |||
| stCMDNewCall | string | NEWCALL: | Incomming call instruction | instruction for an incoming call | ||
| stCMDEndCall | string | ENDCALL: | End call instruction | instruction for an finished call | ||
| inMissedCallTime | integer | Display missed calls | Display missed calls for N minutes | |||
| inDaysForDeletedOrders | integer | Days for deleted orders | Show deleted orders in N days | |||
| inDaysForDeletedOrders | integer | |||||
| CallSoft | CallSoft settings | |||||
| stpbx_IP | string | 127.0.0.1 | PBX ip address | PBX ip address | ||
| inpbx_Port | tcpport | 0 | PBX port | PBX port | ||
| stpbx_NatIP | string | NAT ip address | NAT ip address | |||
| stpbx_Login | string | PBX Login | Login name on the PBX | |||
| stpbx_Pass | string | PBX password | Password to log on to the PBX | |||
| stpbx_DefRefPhone | string | Call transfer to | Phone number for call transfer | |||
| inpbx_Expires | integer | 0 | PBX session expires | PBX session expires(0-used default on SipModule) | ||
| stsipM_IP | string | 127.0.0.1 | SipModule IP | IP adress SipModule | ||
| insipM_Port | tcpport | 4505 | SipModule port | SipModule port | ||
| stAuthID | string | Authorization id | Authorization id ( it needs some service providers ) | |||
| stAuthID | string | |||||
| Printsettings | print and preview | |||||
| boPrnToStatus2 | boolean | 0 | Invoice for "Production" | Print invoice for state "Production" | ||
| boPrnToStatus3 | boolean | 0 | Invoice for "Sended" | Print invoice for state "Sended" | ||
| boPrnToStatus4 | boolean | 0 | Invoice for "Takeaway" | Print invoice for state "Takeaway" | ||
| boShowReport | boolean | 0 | Preview invoice | Preview invoice before print | ||
| stExportType | rk7ExportType | Export format | Export format invoice for send by email | |||
| inRK7PrintLayOut | integer | 0 | Layout ident | Layout ident for send by email | ||
| inRK7StationCode | integer | 0 | Station ident | Station ident for export (used for requests to the server) | ||
| DefaultValues | defaul values | |||||
| stFName | string | - | First Name | For First Name | ||
| stLName | string | - | Last Name | For Last Name | ||
| stMName | string | - | Middle Name | For Middle Name | ||
| stCountry | string | 1 | Country | Country | ||
| stCity | string | 1 | City | City | ||
| stPhoneType | string | 251 | Phone number type | Phone number type | ||
| stAddressType | string | 252 | Address type | Address type | ||
| blAdvInfoClient | string | Comment to custumer | Comment to custumer | |||
| blAdvInfoAddress | string | Comment to address | Comment to address | |||
| blAdvInfoOrder | string | Comment to the order | Comment to the order | |||
| stPhoneMask | string | Telephone input mask | Telephone input mask.Regular expression like "(8|\+7)(\(\d{3}\))\d{3}\-\d{2}\-\d{2}" | |||
| CallCenter | Call center | |||||
| boUseCallCenter | boolean | 0 | used scheme of work - Call Center | used scheme of work - Call Center | ||
| inTimeForAddition | integer | 5 | minuts to edit order | minutes before the estimated time of sending the forwarder to edit order | ||
| boValidateRestOrder | boolean | 0 | Validate order on the remote restaurant | Validate order on the remote restaurant | ||
| boFilialProduce | boolean | 0 | management branch orders | manage orders on a remote restaurant from dispatcher of centre | ||
| inRestInThread | integer | 3 | Restaurants for 1 thread(Transport) | Restaurants for 1 thread(Transport) | ||
| MapsAndZones | maps and zones | |||||
| UseDeliveryZones | boolean | 1 | delivery zones | use delivery zones | ||
| boUSE_GPX | boolean | 0 | GPX Server | GPX server used to determine the delivery zones | ||
| stMapType | mapTypes | mtNull | Map type | map type to show the way and getting GPS coordinates from address | ||
| stMapKey | string | Key for Map | The key is to use the map (required for different types of cards and their versions) | |||
| stGMapKey | string | Key for google map | The key is to use the goole map (required for different types of maps and their versions) | |||
| stMapCenter | string | stMapCenter | Center of map | Center the map such as "Great Britan, London" | ||
| stMapLanguage | maplanguages | en | language for map | language for map | ||
| stMapRegion | mapregions | RU | Region for map | Region for map | ||
| inPrecisionLevel | PrecisionLevels | plNone | geolocation precision | geolocation precision | ||
| Confirmations | Confirmations | |||||
| boQ_Phone_Delete | boolean | 0 | Warning when deleting phone number | Warning when deleting phone number | ||
| boQ_Street_Not_Exist_Add | boolean | 0 | Request to add street | Request to add street if it does not exist | ||
| boQ_FName_Not_Exist_Add | boolean | 0 | Request to add first name | Request to add first name if it does not exist | ||
| boQ_MName_Not_Exist_Add | boolean | 0 | Request to add middle name | Request to add middle name if it does not exist | ||
| boQ_Clear_Current | boolean | 0 | Request on the client card clearing | Request on the client card clearing | ||
| boQ_AddStreetToZone | boolean | 0 | Request to add address into zone | Request to add address into zone | ||
| boQ_NotFoundParam | boolean | 0 | Warning when searching without the input data | Warning when searching without the input data | ||
| boQ_SaveAndExit | boolean | 0 | Request on save order | Request on save order | ||
| boQ_UnSaveAndExit | boolean | 0 | Request on cancell order | Request on cancell order | ||
| boErr_Anonim_LNAme | boolean | 0 | Disable anonymous last name | Disable anonymous last name | ||
| boErr_Anonim_FNAme | boolean | 0 | Disable anonymous first name | Disable anonymous first name | ||
| boErr_Anonim_MNAme | boolean | 0 | Disable anonymous middle name | Disable anonymous middle name | ||
| boQ_RBOMenu | extBoolConf | 1 | Warning / error when checking the order on a remote restaurant | Warning / error when checking the order on a remote restaurant | ||
| boQ_NoRest | extBoolConf | -1 | Restaurant not defined | Warning / error when restaurant not defined or it`s central | ||
| boQ_ExpFirstOrder | extBoolConf | -1 | Marked not the first order | Error / warning if not marked the first order when sending the forwarder | ||
| boNeedFirstOrder | extBoolConf | 0 | 1-st order for expeditor | Expeditor must take first order for delivery | ||
| StatusesNames | status names | |||||
| Status0 | string | unconfirmed | status name for unconfirmed | Status name for unconfirmed external order | ||
| Status1 | string | wait | status name for new orders | Status name for new confirmed orders | ||
| Status2 | string | cooking | status name for started cooking ordrers | name for the status of the order which has been sent to the kitchen to cook | ||
| Status3 | string | sended | status name for sended orders | name for the status of the order which has been sent to the client | ||
| Status4 | string | delivered | status name for delivered orders | status name for the order which is delivered to the client | ||
| Status5 | string | archive | status name for completed orders | status name for the work order status to which the completed | ||
| Status6 | string | editing | status name for editing orders | status name for the order status is being edited | ||
| Status7 | string | ready (kitchen) | status name for fineshed cooking orders | name for the status of the order finished cooking | ||
| Status8 | string | accepted | status name for accepted orders | the name of the status of the order which was accepted at the branch | ||
| StatusColors | status colors | |||||
| Status_0 | string | Color for unconfirmed | Color for unconfirmed external order | |||
| Status_1 | string | #F1E989 | color for new orders | color for new confirmed orders | ||
| Status_2 | string | #A4E9BC | color for started cooking orders | color for the status of the order which has been sent to the kitchen to cook | ||
| Status_3 | string | #D7C7F5 | color for sended orders | color for the status of the order which has been sent to the client | ||
| Status_4 | string | #A2D3FC | color for delivered orders | color for the order which is delivered to the client | ||
| Status_5 | string | #CDCDCD | color for completed orders | color for the work order status to which the completed | ||
| Status_6 | string | #F6F2A9 | color for editing orders | color for the order status is being edited | ||
| Status_7 | string | #C4E49A | color for fineshed cooking orders | color for the status of the order finished cooking | ||
| Status_8 | string | #E39F5B | color for accepted orders | color of the status of the order which was accepted at the branch | ||
| AlarmColor | string | #FFB3B3 | flickering color | flickering color for orders that are late with sending | ||
| StartPrograms | programms pathes | |||||
| RK7CashPath | string | .\RunCash.cmd | rk7Cash start | Path to bat/cmd/js/exe file for start rk7Cash | ||
| Operator | string | .\Operator.exe | Operator start | Path to operator.exe | ||
| SDispatcher | string | .\SDispatcher.exe | Dispatcher start | Path to dispather.exe | ||
| Expeditor | string | .\Expeditor.exe | Expeditor start | Path to Expeditor.exe | ||
| SIPModule | string | SipModule start | Path to SipModule.exe or same bat/cmd file | |||
| AnyFile1 | string | Any File 1 start | Path to any bat/cmd/js/exe file | |||
| AnyFile2 | string | Any File 2 start | Path to any bat/cmd/js/exe file | |||
| DLVLogs | log files | |||||
| OperatorLogSize | logSize | 4096 | Operator.log size | Operator.log file size | ||
| OperatorXMLLogPath | string | OpLogXML | Operator XMLs | Path to XML logs for operator | ||
| OperatorXMLLogSize | xmlLogCount | 4000 | Operator XML quantity | the quantity of XML files for the operator | ||
| DispatcherLogSize | logSize | 4096 | Dispatcher.log size | Dispatcher.log file size | ||
| DispatcherXMLLogPath | string | DispLogXML | Dispatcher XMLs | Path to XML logs for dispatcher | ||
| DispatcherXMLLogSize | xmlLogCount | 4000 | Dispatcher XML quantity | the quantity of XML files for the dispatcher | ||
| ExpeditorLogSize | logSize | 4096 | Expeditor.log size | Expeditor.log file size | ||
| ExpeditorXMLLogPath | string | ExpLogXML | Expeditor XMLs | Path to XML logs for expeditor | ||
| ExpeditorXMLLogSize | xmlLogCount | 4000 | Expeditor XML quantity | the quantity of XML files for the expeditor | ||
| TransportLogSize | logSize | 4096 | CCTransport.log size | CCTransport.log file size | ||
| TransportXMLLogPath | string | TrLogXML | Transport XMLs | Path to XML logs for transport | ||
| TransportXMLLogSize | xmlLogCount | 4000 | Transport XML quantity | the quantity of XML files for the Transport | ||
| DictanoryEditorLogSize | logSize | 4096 | DictanoryEditor.log size | DictanoryEditor.log file size | ||
| DictanoryEditorXMLLogPath | string | DicLogXML | DictanoryEditor XMLs | Path to XML logs for DictanoryEditor | ||
| DictanoryEditorXMLLogSize | xmlLogCount | 4000 | DictanoryEditor XML quantity | the quantity of XML files for the dictanoryeditor | ||
| DLVServerLogSize | logSize | 4096 | DLVServer.log size | DLVServer.log file size | ||
| DLVServerXMLLogPath | string | DSRVLogXML | Delivery Server XMLs | Path to XML logs for delivery Server | ||
| DLVServerXMLLogSize | xmlLogCount | 4000 | Delivery server XML quantity | the quantity of XML files for the delivery server | ||
| Email server | ||||||
| SMTPServer | string | SMTP Server | SMTP Server name or ip | |||
| SMTPPort | tcpport | 465 | SMTP Server port | SMTP Server port | ||
| SMTPLogin | string | SMTP Server user | SMTP Server user | |||
| SMTPPass | string | SMTP Server password | SMTP Server password | |||
| stSMTPSSLType | emailSecurity | sslvTLSv1 | SMTP Server security | SMTP Server security | ||
| DLVSounds | Sounds to program events | |||||
| SoundInet | string | Ringing.wav | WAV file for new external order(operator) | WAV file for new external order(operator) | ||
| SoundInetLen | integer | 3 | Sound duration for new external order | Sound duration for new external order | ||
| SoundInetEachSec | integer | 120 | Play sound every N seconds(external order) | Play sound every N seconds(external order) | ||
| SoundCall | string | Ringing.wav | WAV file for new call | WAV file for new call(operator callerid) | ||
| SoundCallLen | integer | 5 | Sound duration for new call | Sound duration for new call | ||
| SoundCallEachSec | integer | 3 | Play sound every N seconds(Call) | Play sound every N seconds(Call) | ||
| SoundDispatcher | string | Ringing.wav | WAV file for new order(dispatcher) | WAV file for new order(dispatcher) | ||
| SoundDispatcherLen | integer | 3 | Sound duration for new order(dispatcher) | Sound duration for new order(dispatcher) | ||
| SoundExpeditor | string | Ringing.wav | WAV file for new order(expeditor) | WAV file for new order(expeditor) | ||
| SoundExpeditorLen | integer | 5 | Sound duration for new order(expeditor) | Sound duration for new order(expeditor) | ||
| StationUI | Station user interface | |||||
| WindowLeft | integer | 0 | X | X coordinate of top-left corner | ||
| WindowTop | integer | 0 | Y | Y coordinate of top-left corner | ||
| UseTouchScreen | integer | 0 | Allow to use touch screen | Allow to use touch screen | ||
| CanAppendZone | integer | 0 | Allow to append zone | Allow to append zone | ||
| UseMainSearch | integer | 1 | Show order search | Show order search |
7.1. As for server user interface, change text in file DLVServ.XML
7.2. As for client user interface, follow the same method as for previous Delivery versions.
7.3. Complete future translation pending http://localize.ucs.ru/projects/delivery/
