Creating an order with a dish by weight

Introduction

In r_k Delivery it is possible to create an order with dishes sold by weight.

To enable the functionality of weighted dishes in the interface of the establishment and call center, you need White Server Agent version 2.7.1.7 or higher.

To create a delivery order with a weighed dish:

Create a dish in the manager station
In the r_k Delivery admin panel, add a dish to the menu view
Create an order with a dish sold by weight.

This article will look at an example of creating and selling a weighed dish 'cake'.

Presets

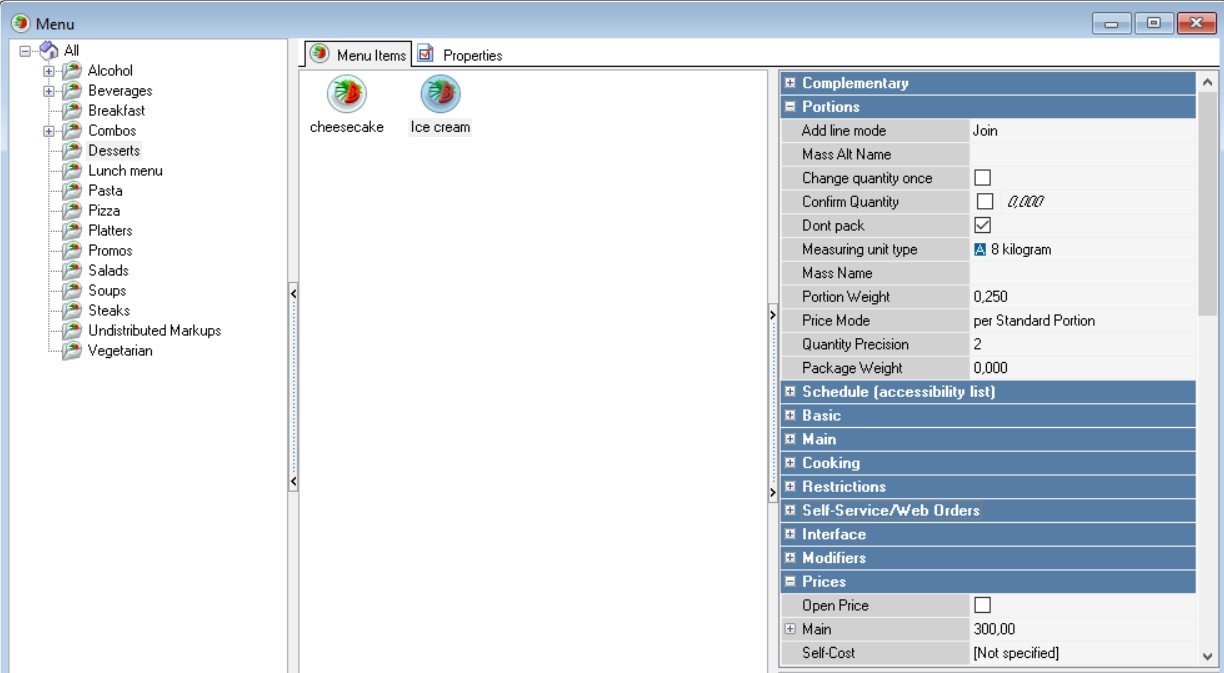

Create a dish at the Manager Station.

Create a weighed dish, such as Medovik Cake (Russian Honey Cake)
Set the price and activate the dish
In the Servings section, specify:
- Add to order - Merge
- Unit type - Kilogram
- Turn off the setting 1 Weight change. If it is turned on, the weight of all weighed items will have to be confirmed at the cash register
- Turn on the Don't pack setting
- Portion weight — the weight of a cake portion in the example establishment is 250 grams. In the field, enter 0.25, since the unit of measurement selected is kilograms
- Price mode — Portion per Standard Portion. In this case, the specified price will be applied specifically to the portion, that is, 250 grams of cake will cost 350 rubles.
Save the changes.

In the same way, create a dish sold by weight, for example, Candies by weight. Only in the dish settings, in the Price mode field, select Portion by weight.

Then add the dish to the menu view in the r_k Delivery admin panel.

Go to the r_k Delivery admin panel
Go to Menu > Restaurant Menu View

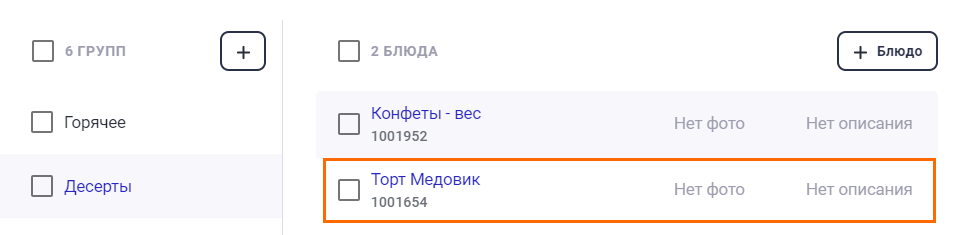

Select a group and add a weighed dish to it
Click on the Publish menu for establishments button.

Done, the weighed dish has been added to the view. Now it can be sold.

Creating an order

Request

To create an order, use the query:

POST https://delivery.ucs.ru/orders/api/v1/orders

CODE

Content-Type specify application/json.

You can only add weight to a dish when adding it to an order. If you enter weight into an existing dish in the order, it will not be split into portions.

Request body example

{
  "comment": "cook with love ",
  "restaurantId": "a7db6017-3f7b-444d-a1d4-9c277b28ffd0",
  "persons": "1",
  "dishList": [
    {
      "id": "8198255e-1c7a-702a-a512-05b1803561e5",
      "name": "Candy - weight",
      "price": "500",
      "imageUrls":[
         ],
        "measure": {
                "value": 0.100,
                "unit": "kg",
                "priceMode": "PerUnitOfWeight",
                "qntDecDigits": 3,
                "changeQntOnce": false,
                "joinMode": "almOnePortion"
                },
         "quantity": 0.75,
         },
 ],
 "expeditionType": "delivery",
 "expectedAt":"2022-12-23T18:03:42.504+03:00",
 "paymentTypeId": "card",
 "changeFrom": "5000",
 "guest": {
   "email": "eewd@dgf.ru",
   "phone": "79991234567",
   "firstName": "Oleg"
 },
 "address": {
   "postcode": "109443",
   "cityId": "73439fb3-c0c4-42ca-a269-64f031a6a33b",
   "street": "Yunykh Lenintsev",
   "comment": " the house is to the right of the school",
   "lat": "55.700897",
   "lon": "37.773808",
   "cityName": "Moscow",
   "entrance": "1",
   "houseNumber": "85",
   "apartmentNumber": "6",
   "subway": "Kuzminki",
   "fullAddress": "109443, Moscow, Yunykh Lenintsev st., 85 sec. 2, app. 6"
  }
}

CODE

Depending on the delivery method: delivery — delivery by courier or pickup — self-pickup, the required fields change.

To ensure that the system transfers orders immediately, specify the Asap parameter in the request. In this case, do not specify the expectedAt parameter, as it becomes optional. Asap orders are transferred to the cash register with minimal delay.

Parameter	Parameter type	Description
comment	string	Comment to order
restaurantId	string	Restaurant ID from Delivery in GUID format
persons	int	Number of persons
dishList	array	Order contents
-id	string	The ID of the dish from the Delivery menu view, which is used for synchronization with the cash register, in GUID format.
-name	string	Name of the dish
-price	double the separator will always be a period - "."	Price of the dish
-measure		Weight parameters. Backward compatibility is supported: if you pass null or do not pass parameters from measure, the system will automatically substitute data from the menu. In case of passing empty strings or values different from the values in the menu, an exception will occur when creating an order.
--value	double	Serving size
--unit	string	Unit of measurement: kg, liter, pcs. The meaning is not a dictionary one.
--priceMode	string	Cost calculation parameter set in r_keeper. Acceptable values: PerUnitOfWeight — portion by weight, calculated as quantity = weight PerPortion — portion for a standard portion is calculated as: quantity = weight/value weight = quantityvalue PerDose — portion for drinks, calculated as: quantity = weight/value weight = quantityvalue
--qntDecDigits	double	Number of digits in weight after the decimal point, configured in r_keeper
--changeQntOnce	string	Is it possible to change the weight, a dish setting from r_keeper
--joinMode	string	Parameter for adding to order, configured in r_keeper. Allowed values: almJoinLines — merge. Adds a weight/quantity to the same one existing in the order almSeparately — on a separate line almOnePortion — a separate line for each portion
-quantity	double the separator will always be a period - "."	Weight of the added portion
-ingredients	array	Ingredients
--id	string	The ingredient ID from the Delivery menu view that is used to sync with the cash register, in GUID format
--name	string	Ingredient name
--price	double the separator will always be a period - "."	Price of ingredient
--quantity	double the separator will always be a period - "."	Quantity of ingredient
--ingredients	array	modifiers
---id	string	the modifier ID from the Delivery menu view that is used to synchronize with the cash register, in GUID format.
---name	string	modifier name
---price	double the separator will always be a period - "."	modifier price
---quantity	double the separator will always be a period - "."	modifier quantity
expeditionType	string	order receiving method ID: delivery — delivery by a courier pickup — self-pickup
soonest	boolean	order transfer time As soon as possible
expectedAt	DateTime	the time by which the order is expected
paymentTypeId	string	payment method ID: cash — payment in cash card — payment by card online — online payment.
changeFrom	double the separator will always be a period - "."	change from what amount
guest		guest
-email	string	guest Email
-phone	string	phone number
-firstName	string	name
-lastName	string	last name
address		delivery address
-postcode	string	zip code
-street	string	street
-comment	string	comment to the address
-lat	double the separator will always be a period - "."	latitude
-lon	double the separator will always be a period - "."	longitude
-cityId	string	city ID
-cityName	string	name of the city
-floor	int	floor
-houseNumber	string	house number
-apartmentNumber	string	apartment number
-entrance	string	entrance
-subway	string	subway
-fullAddress	string	full address

Example answer

{
    "result": {
        "orderId": "233132",
        "restaurant": {
            "phone": "79123456789, 79987654321",
            "address": "Bagrationovsky proezd 3"
        },
    }
}

CODE

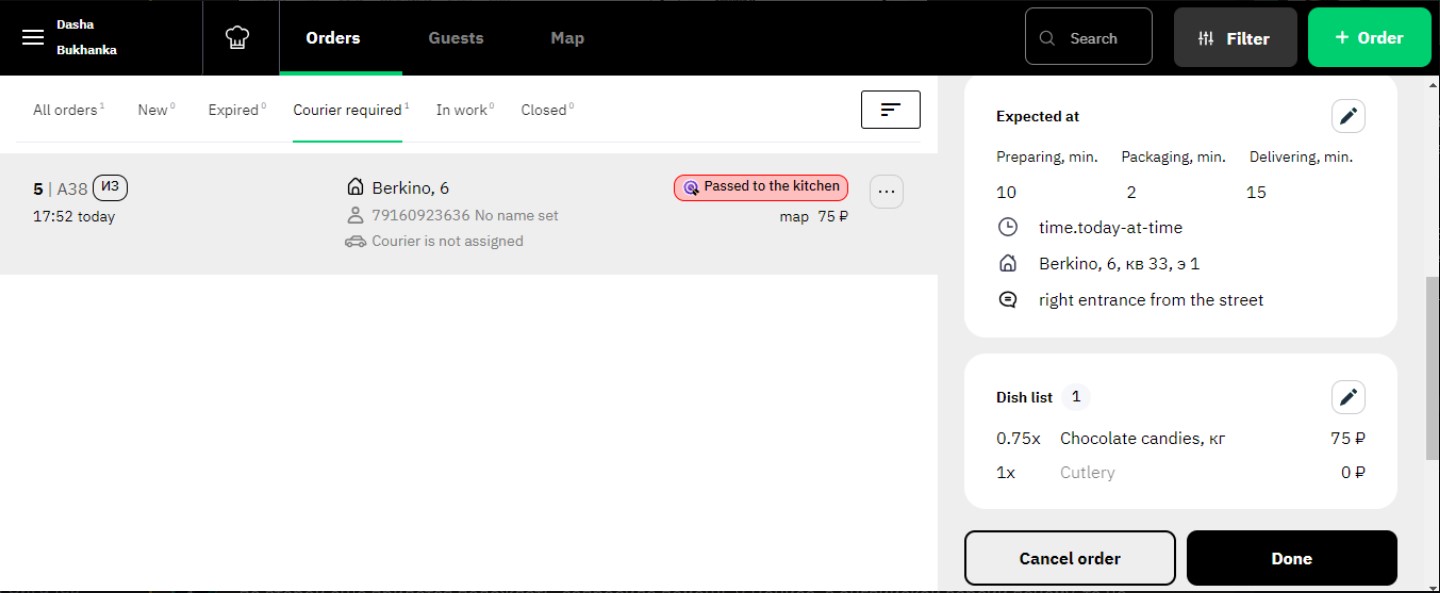

An example of sending such a request to the establishment interface:

Editing an order

You can only add weight to a dish when adding it to an order. If you enter weight into an existing dish in the order, it will not be split into portions.

Request

PATCH https://delivery.ucs.ru/orders/api/v1/orders/{orderId}

CODE

where {orderId} is the order number.

Content-Type specify application/json.

Request body example

{
"dishList": [
    {
      "id": "8198255e-1c7a-702a-a512-05b1803561e5",
      "name": "Candy - weight",
      "price": "500",
      "imageUrls":[
         ],
        "measure": {
                "value": 0.100,
                "unit": "kg",
                "priceMode": "PerUnitOfWeight",
                "qntDecDigits": 3,
                "changeQntOnce": false,
                "joinMode": "almOnePortion"
                },
         "quantity": 0.55,
         },
 ],
}

CODE

To change the weight of a dish, change the quantity parameter.

Example answer

{
    "result": {
        "item1": {
            "orderId": "233132",
            "restaurant": null,
            "onlinePayUrl": null
        },
        "item2": {}
    }
}

CODE

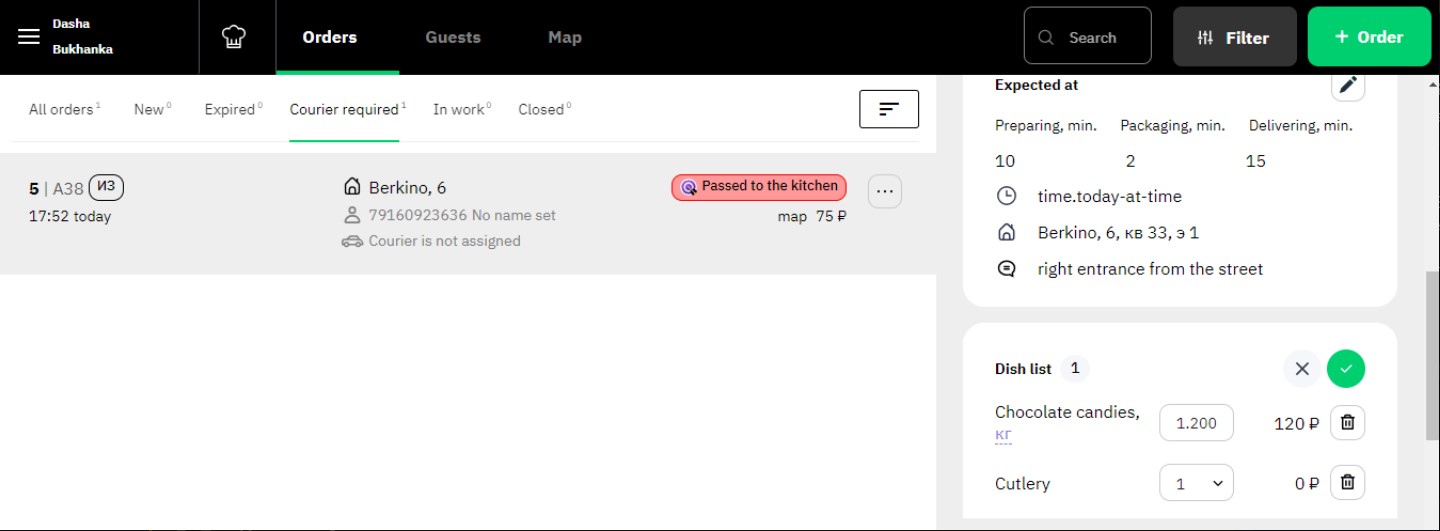

An example of sending such a request to the establishment interface - the weight of the dish and the price of the order have been changed:
