Setting up Connection with PostgreSQL on Remote Server
This article describes how to configure r_keeper connection with a remote PostgreSQL server. The process of installing a database on a remote server is described in the Installing PostgreSQL on Ubuntu article.
Installing the ODBC Driver
Download the ODBC driver corresponding to the installed PostgreSQL version.
Install the downloaded driver on the computer where the r_keeper reference server is installed. Run the installer and follow the steps sequentially without changing the default settings.
ODBC Driver Configuration

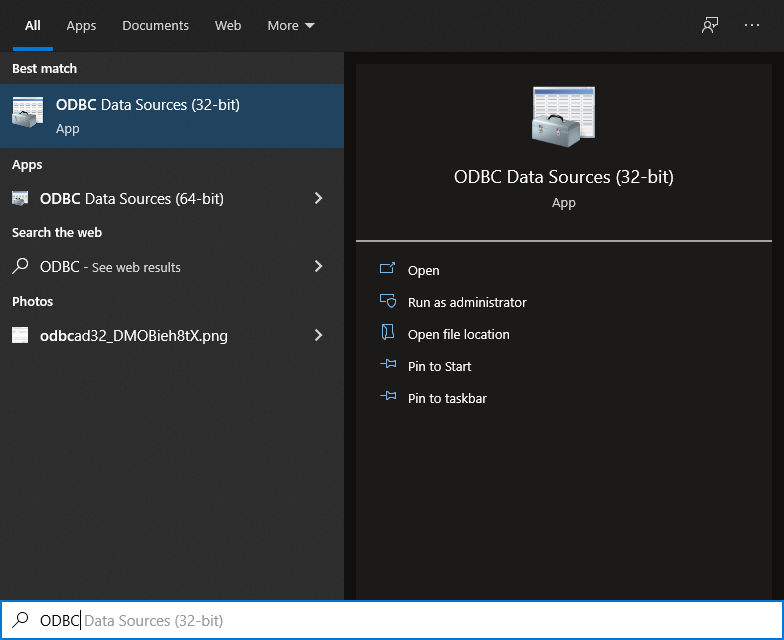

Run the 32-bit version of the ODBC Data Source Application
On the User DSN tab, click Add

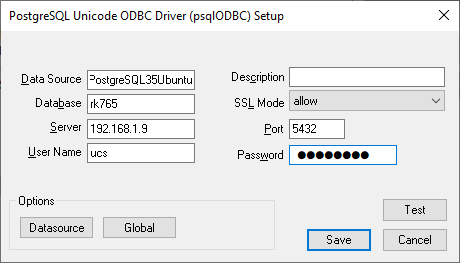

In the connection settings window that opens, enter:
Data Source - any name of the created source
Database - the name of the created database in PostqreSQL
Server - the IP address of the PosgreSQL server
User Name - the name of the created database user
SSL Mode - allow encryption, leave Allow
Port - connection port
Password - the password of the database user

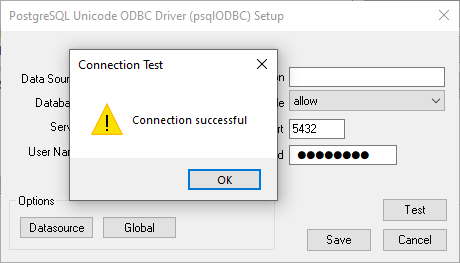

Click Test to test the created connection
Click OK, then Save.
Configuring External Database in r_keeper 7
Start the reference server
Start the manager station and log in

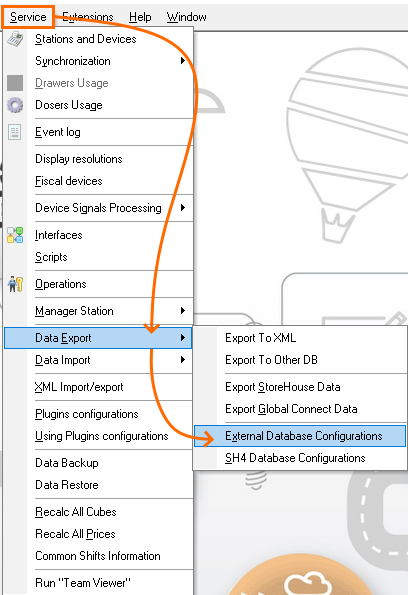

Go to Service > Data Export > External Database Configurations

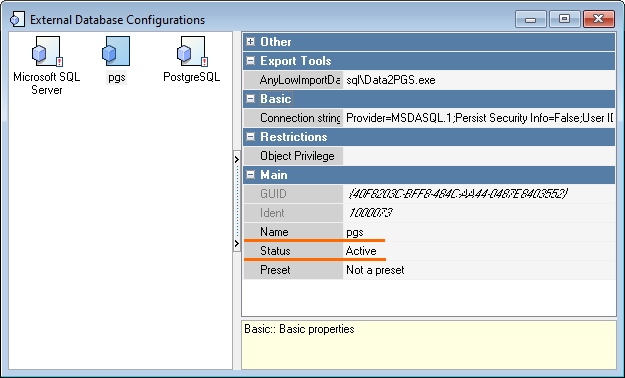

Make a copy of PostgreSQL, for example, pgs. To do this:

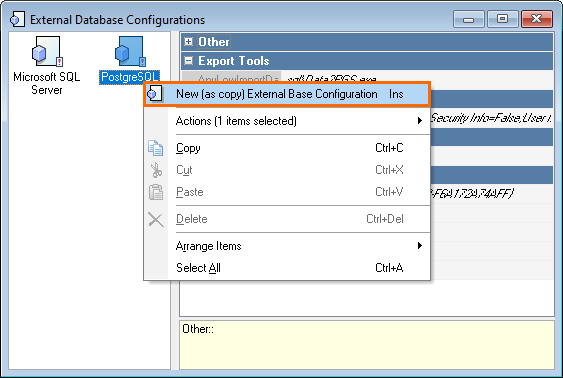

Right-click on the database name
Select New (as copy) External Base Configuration
Enter the name of the new database
Change the status to Active.
In the Connection string field, click on three dots

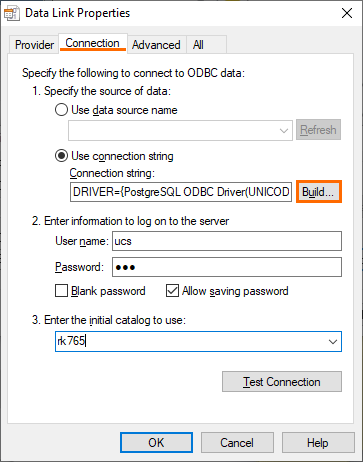

On the Connection tab, click Build...
In the Select Data Source window, go to the Machine Data Source tab and select the previously created ODBC data source from the available options

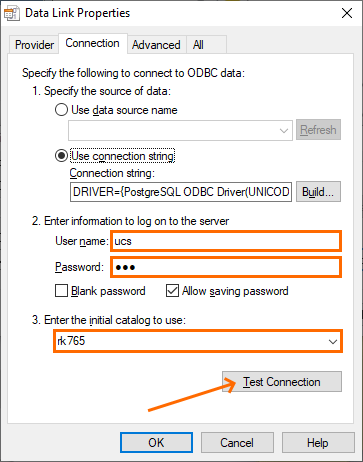

Enter your database username and password.
Select the created base from the drop-down list.
Click Test Connection

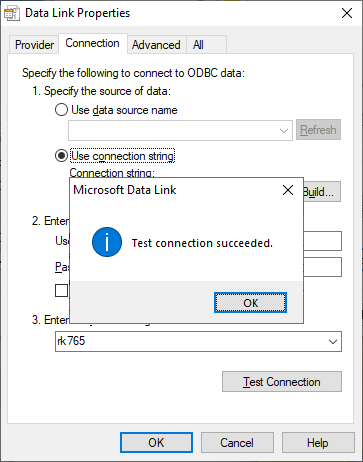

A successful verification message appears:
Unloading References into Database
To upload data from r_keeper to the created database in the manager station:

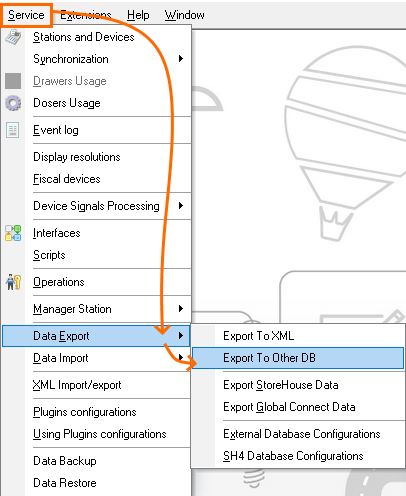

Go to Service > Export Data > Export to Other Database

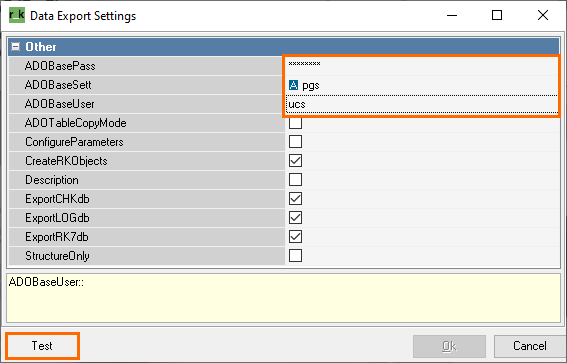

In the DB connection settings block, enter:
ADOBasePass — the password of the database user
ADOBaseSett — select the created connection from the drop-down list
ADOBaseUser — the username of the database
Click Test
After checking, the OK button will become active
Click OK, the export of data to another database will start
Go to Options > OLAP Reports > Reporting Servers

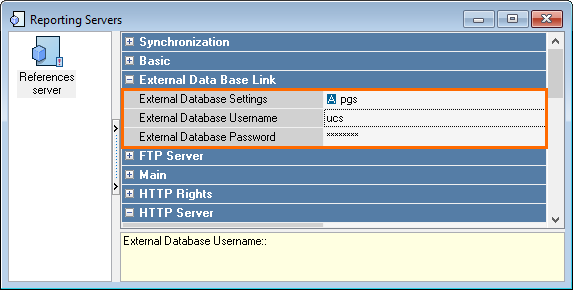

Select the reference server and specify the created connection to the database, username, and password in the External Data Base Link section
The connection is configured, now you can work with cubic reports.
