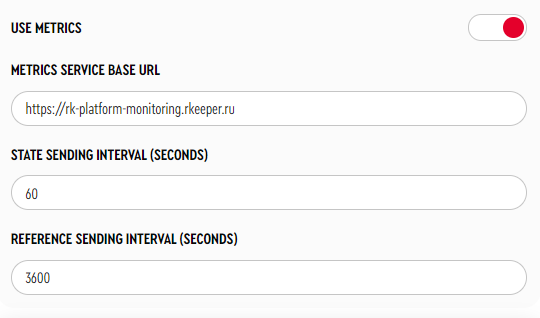

To enable the transmission of kiosk status metrics, navigate to Service Menu > Main Settings:
- Enable the parameter Use metrics.
- In the Metrics Service Base URL parameter, specify the address: https://rk-platform-monitoring.rkeeper.com.
- Set the State Sending Interval (seconds) — default is 60 seconds.
- Set the Reference Sending Interval (seconds) — default is 3600 seconds.

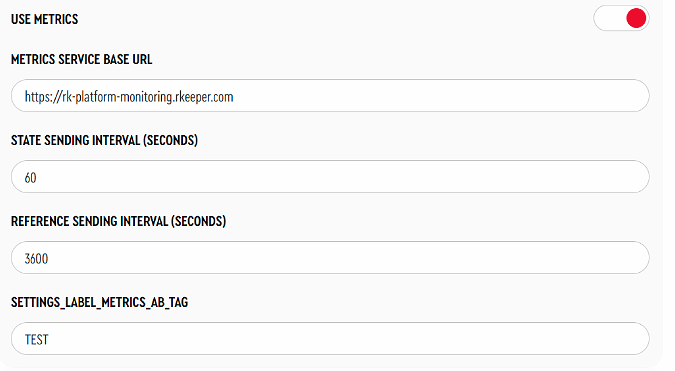

Set the A/B Testing tag for metrics — used for additional labeling of metrics; the value can be any string, and there is no uniqueness check.
To retrieve data from the metrics service, you will need a Token. You can obtain the token by sending a request to the email: yaro@ucsrkeeper.at.

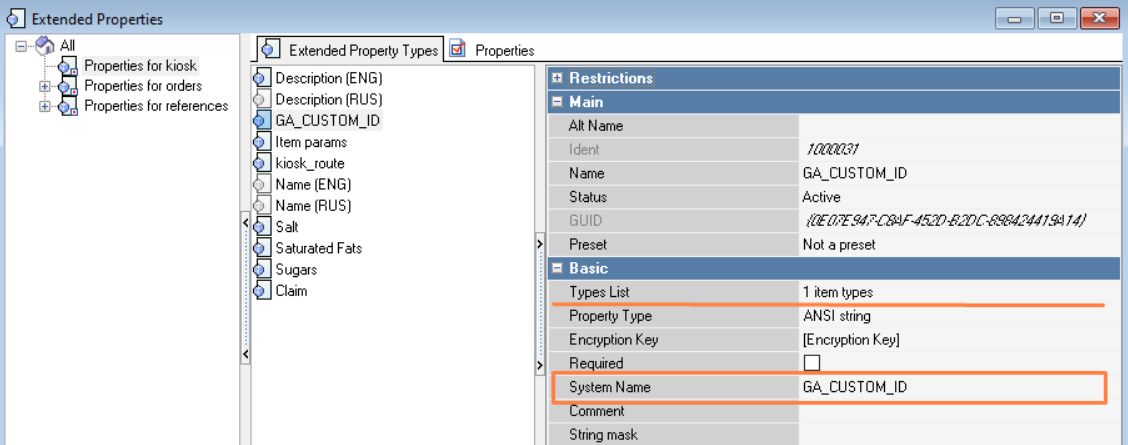

Also create a separate extended properties for the restaurant:
- System Name — GA_CUSTOM_ID
- Types List — Restaurant.

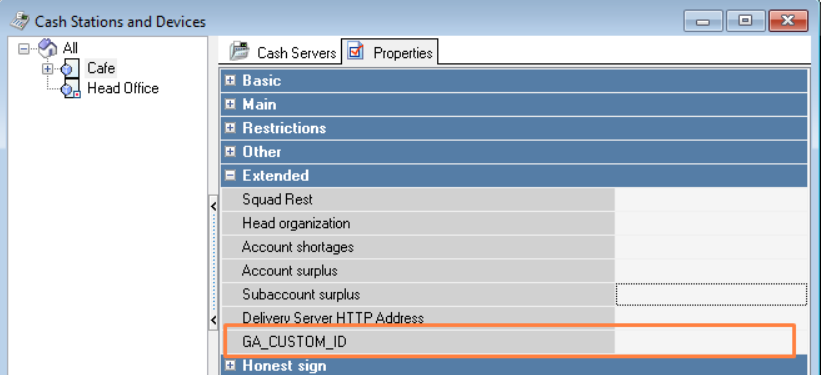

In the Service > Stations and Devices directory for the restaurant, in the created extended property, specify ChampsID — the restaurant code in the global KFC system (data can be obtained from the Franchisee).
Request:
curl --location --request POST 'https://rk-platform-monitoring.rkeeper.com/api/v1/metrics/read' \
--header 'Authorization: Bearer <Token> \ The Token can be obtained by requesting at yaro@ucsrkeeper.at.
--header 'Content-Type: application/json' \
--data-raw '{
"dateFrom": "2025-05-06T00:00:00Z",
"dateTo": "2025-05-07T23:00:00Z",
"cntFrom": 12000,
"cntTo": 13000,
"total": 100,
"cashNetName": "KIOSK_1_STM",
"champsID": "387K04",
"objectCode": "527280004"
}'
- dateFrom and dateTo — the time range for the metrics (from/to).
- cntFrom and cntTo — the message counter range (field cnt).
- total — the number of metrics to return in the response.
- cashNetName — the kiosk name.
- champsID — the kiosk's champsID.
- objectCode — the kiosk object code.
[
{
"timestamp": "2025-07-08T14:57:51Z",
"payload": {
"typeData": "Time based event",
"data": {
"state": "Waiting window",
"champsID": "234234234234211",
"kioskName": {
"cashGuid": "{1E5C9B01-A065-48B0-882A-DDB46C22BC9C}",
"cashNetName": "RK7CASH004"
},
"kioskAppVersion": {
"back": " v0.0.383.21-rev.7b44ad92-j.42173",
"front": "0.0.330.21",
"theme": "KFCCee"
},
"objectCode": "199990001",
"tagAB": "AAA"
},
"cnt": 21259
}
}
]
- timestamp —the date and time the metric was saved on server
payload - typeData — metric type
payload - data — main information about the metric (depends on the type of metric)
payload - cnt — metric counter. Starts at 1 for each kiosk and increments by 1 as metrics are sent from the kiosk.
Metric types (typeData):
- References — we send a list of active cash registers and the restaurant schedule associated with the kiosk
- Time based event — we send the name of the current kiosk screen at the “State sending interval (in seconds)”
- Event based event — we send information about order payment or about sending the order for payment at the cashier.
Common fields for all metric types:
- champsID — restaurant code in the global KFC system. Any text can be entered here. Uniqueness is not checked

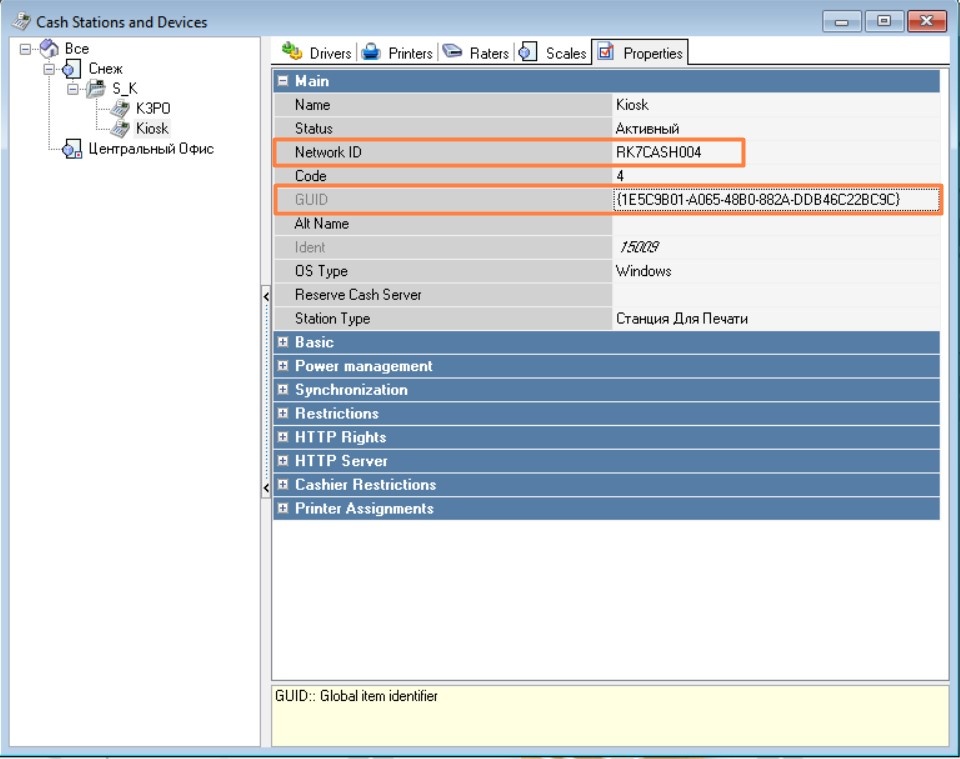

- kioskName - cashGuid — the GUID of the cash register the kiosk is connected to. In the Rkeeper Manager this field is GUID
- kioskName - cashNetName — the network name of the cash register the kiosk is connected to. In the Rkeeper Manager this field is Network ID
kioskAppVersion - back — full information about version of kiosk's backend.
Value from example: v0.0.383.21-rev.7b44ad92-j.42173:
- v0.0.383.21 — main information about kiosk's backend part;
- rev.7b44ad92-j.42173 — technical information.
- kioskAppVersion - front — front part version name
- kioskAppVersion - theme — used theme

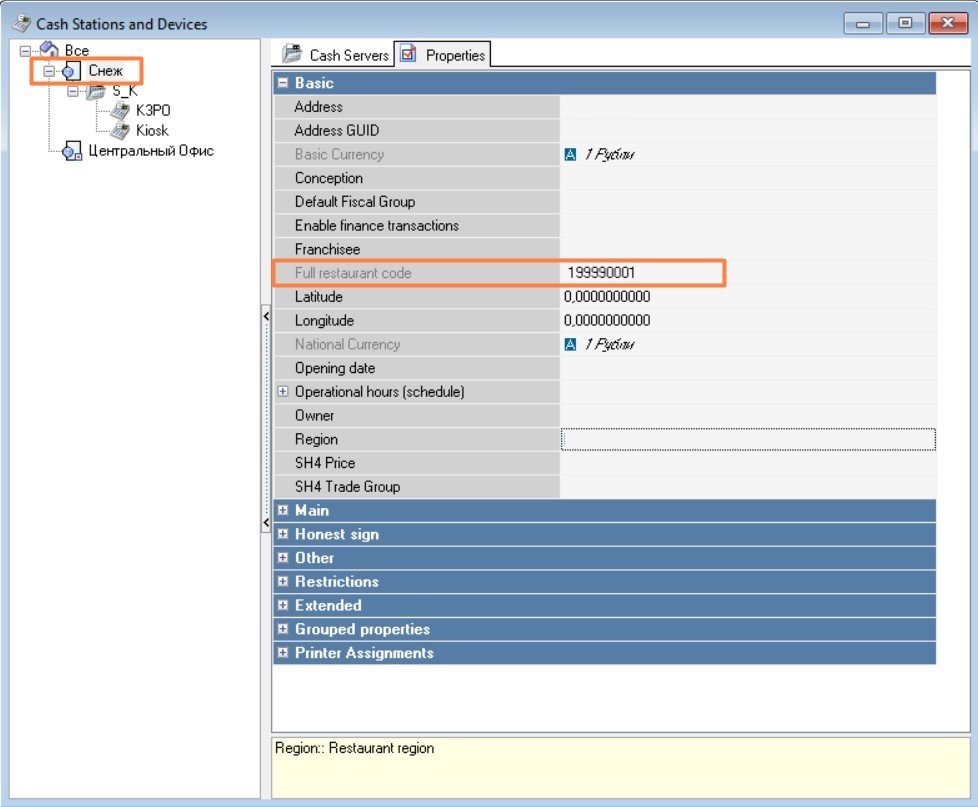

- objectCode — full object code, kiosk is connected to
- tagAB - A/B Testing tag. Used for additional labeling. Set during the initial kiosk configuration in the parameter A/B Testing tag for metrics. The value can be any string, and uniqueness is not checked.
Fields depending on the metric type (data):
Metric type: References
The kiosk sends a list of active cash registers and the restaurant schedule associated with the kiosk.
{
"timestamp": "2025-07-08T07:13:43Z",
"payload": {
"typeData": "References",
"data": {
"restaurantSchedule": [
{
"daysOfWeek": "[dwSunday]",
"startTime": 36000000,
"endTime": 72000000
},
{
"daysOfWeek": "[dwMonday]",
"startTime": 36000000,
"endTime": 72000000
},
{
"daysOfWeek": "[dwTuesday]",
"startTime": 36000000,
"endTime": 72000000
},
{
"daysOfWeek": "[dwWednesday]",
"startTime": 39600000,
"endTime": 75600000
},
{
"daysOfWeek": "[dwThursday]",
"startTime": 32400000,
"endTime": 54000000
},
{
"daysOfWeek": "[dwFriday]",
"startTime": 36000000,
"endTime": 72000000
},
{
"daysOfWeek": "[dwSaturday]",
"startTime": 60000,
"endTime": 86340000
}
],
"cashes": [
{
"cashGuid": "{7F2B98A5-B365-41EB-A5EC-265E52F05AF1}",
"cashNetName": "3252_KIOSK_PRN_1"
},
{
"cashGuid": "{4EAF23A6-2623-401B-A705-88644A2D4976}",
"cashNetName": "3252_TER1"
},
{
"cashGuid": "{3F6CE085-1048-47BE-844C-9A3C45EE3851}",
"cashNetName": "3252_TER2"
},
{
"cashGuid": "{50EA4090-15D0-4E43-B22E-2324C5E8193A}",
"cashNetName": "3252_TER3"
},
{
"cashGuid": "{CEB84F65-0A96-48B4-9EA3-B31A25FFC4DD}",
"cashNetName": "3252_PRN"
},
{
"cashGuid": "{A0E029D9-D6D3-414E-9B30-19329677F940}",
"cashNetName": "3252_KIOSK_PRN_2"
},
{
"cashGuid": "{E089FA8A-8610-473E-B1AB-0ECC624F5A36}",
"cashNetName": "CASH_ONE"
}
],
"champsID": "234234234234211",
"kioskName": {
"cashGuid": "{A0E029D9-D6D3-414E-9B30-19329677F940}",
"cashNetName": "3252_KIOSK_PRN_2"
},
"kioskAppVersion": {
"back": " v0.0.383.21",
"front": "0.0.330.21",
"theme": "KFCCee"
},
"objectCode": "199990207",
"tagAB": "AAA"
},
"cnt": 20461
}
}

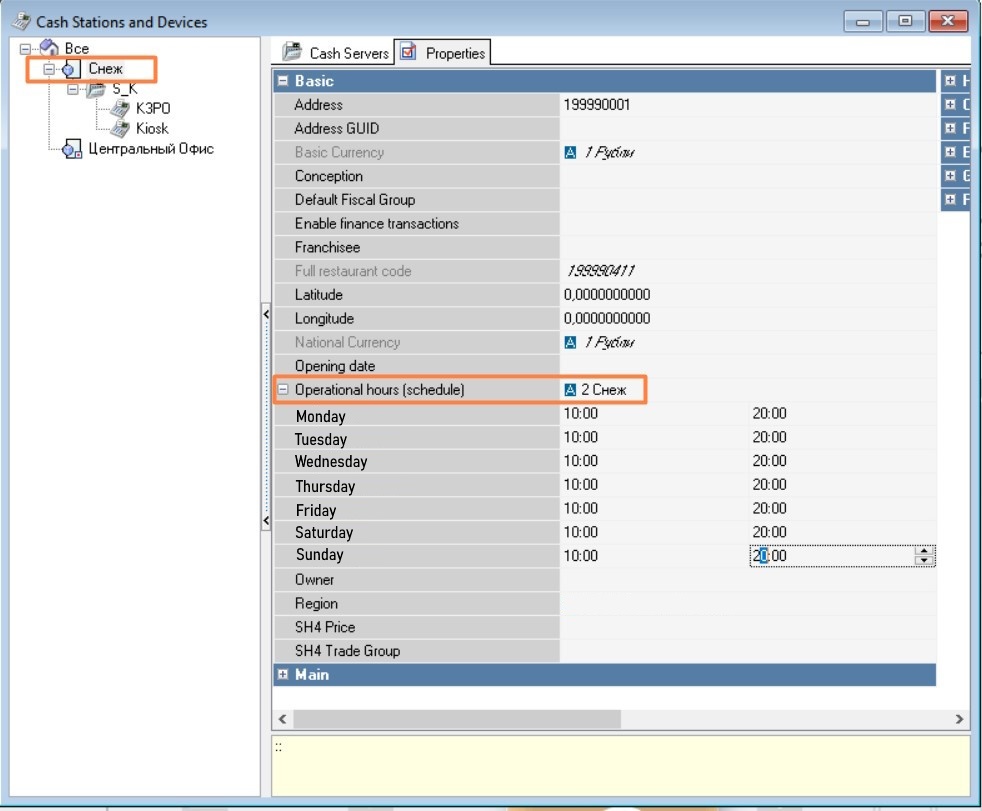

restaurantSchedule —restaurant working schedule::
- daysOfWeek — day of the week
- startTime — start time (time in milliseconds from the beginning of the day (00:00))
- endTime — end time (time in milliseconds from the beginning of the day (00:00))
cashes — list of active cash registers of the restaurant the kiosk is connected to:
- cashGuid — cash register GUID (in the Rkeeper Manager the GUID field);
- cashNetName — network name of the cash register (in the Rkeeper Manager the Network ID field);
Metric type: Time based event
The kiosk sends the name of the current screen at the “State sending interval (in seconds)”.
{
"typeData": "Time based event",
"data": {
"state": "Manager functions",
"champsID": "234234234234211",
"kioskName": {
"cashGuid": "{1E5C9B01-A065-48B0-882A-DDB46C22BC9C}",
"cashNetName": "RK7CASH004"
},
"kioskAppVersion": {
"back": " v0.0.383.21",
"front": "0.0.330.21",
"theme": "KFCCee"
},
"objectCode": "199990001",
"tagAB": "AAA"
},
"cnt": 20433
}
Options for the state field (describes the current screen on the kiosk):
- Waiting window — initial welcome screen: the kiosk is operational but not in use at the moment the metric is sent
- Order — the order process. Starts when the user enters the menu on the kiosk
- Manager functions — staff is performing tasks in the kiosk’s manager interface
- Locked — the kiosk is locked
- Error — an error is displayed on the kiosk screen (for example, if something goes wrong during payment). The message is shown, but the kiosk remains operational
- Unknown — another screen
Metric type: Event based event
The kiosk sends information about order payment or about sending the order for payment at the cashier.
{
"typeData": "Event based event",
"data": {
"orderResult": "successfully",
"orderGuid": "{DCD36825-1EC0-44FC-8011-F568D18203B8}",
"error": {
"code": "0",
"msg": "unknown"
},
"champsID": "234234234234211",
"kioskName": {
"cashGuid": "{1E5C9B01-A065-48B0-882A-DDB46C22BC9C}",
"cashNetName": "RK7CASH004"
},
"kioskAppVersion": {
"back": " v0.0.383.21",
"front": "0.0.309.21",
"theme": "KFCMena"
},
"objectCode": "199990001",
"tagAB": "AAA"
},
"cnt": 20418
}
orderResult — result of an order.
Possible values:
- Successfully — the order was successfully paid
- Failed — an error occurred during payment
- Error_sending — an error occurred while sending the order for payment at the cashier
- Sended — the order was successfully sent to the cashier for payment
- orderGuid — the order GUID. Filled only if the payment is made at the kiosk
error — error information (during payment or sending the order for payment at the cashier):
- code — error code. If there is no error, the value is 0
- msg — error message. If there is no error, the value is unknown.
Erorr examples
"error": {
"code": "RK7_3813",
"msg": "Интерфейс СБП: Ошибка \"Операция отменена\"(18)."
}
"error": {
"code": "RK7_236",
"msg": "Ошибка отправки данных на SBP_FARCARDS2."
}
"error": {
"code": "RK7_2043",
"msg": "Компьютер принтера \"3252_KIOSK_PRN_2 Plaintex 1(2123)\" (3252_KIOSK_PRN_2:3252_KIOSK_PRN_2) не подключен."
}
"error": {
"code": "RK7_2703",
"msg": "Некорректный код карты ПДС \"{B4034D6A-C0D0-4DFB-B768-689D7D20DD15}\"."
}
"error": {
"code": "RK7_3813",
"msg": "Интерфейс СБП: Ошибка \"Неверные параметры.\"(18)."
}
Errors on the kiosk can be either external (from r_keeper 7) or internal (from kiosk).
Internal erorr codes:
External error codes returned by rk7 (marked with the RK7_ prefix followed by the specific error code) are listed in the article Erorr codes.
