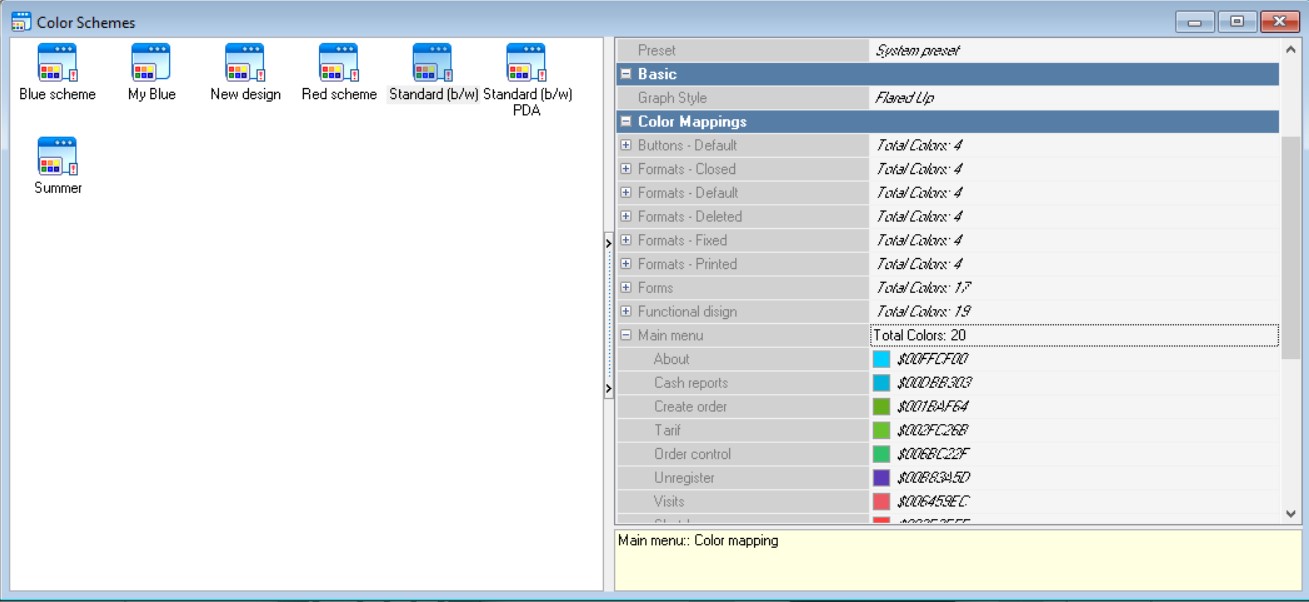

The Color Schemes directory serves to create color schemes for screen forms.
A color scheme is described using two groups of properties: Main and Color Mappings.
Subgroups of format properties contain common attributes shared between formats and button subgroups:
Color – describes the color of the respective area;
Font Color – specifies the font color of the corresponding area;
Selected Color – indicates the color when the cursor highlights the area;
Selected Font Color – determines the font color when the cursor selects the area.
The Color Mappings group includes the following subgroups:
Buttons – Default – sets colors for regular buttons and selection controls. These include order-related buttons on Edit/Close Orders and Closed Orders screens, receipt buttons in the Closed Checks form;
Formats – Closed – defines colors for closed (fully paid) order components;
Formats – Default – establishes colors for unprinted order components;
Formats – Printed – assigns colors to printed order components;
Formats – Deleted – specifies colors for deleted order components;
Formats – Fixed – identifies colors for non-editable order components;
Forms – specifies colors for:
RK Border Color – border color of objects;
RK Button Border Color – borders of object selection buttons;
RK Button Color – colors of buttons not involved in selecting objects (object selection buttons are described in Buttons – Regular subgroup);
RK Button Font Color – font color of buttons unrelated to object selections;
RK Selected Button Border – border color of selected buttons;
RK Button Grad Color – applicable only if the button’s Appearance property is set to ‘blGrad’. It represents the gradient color of the button;
RK Hint Color – hint font color in forms (for example, New Order form hints like “Saved Comment,” “Unsaved Comment,” “Guest Type”);
RK Title Background Color – header background color of forms;
RK Title Font Color – font color of headers in forms;
RK Input Field Background Color – input field background color;
RK Input Field Font Color – input field font color;
RK Form Background Color – overall form background color;
RK Info Panel Color – info panel color.
