Setting up an agent for Delivery

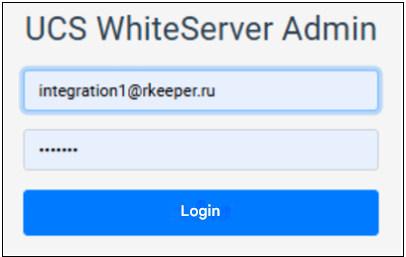

Go to the WhiteServer admin panel. Use the dealer login and password to access it
Go to the Restaurants section
Enter the full object code in the ObjectId field and click the Find button.
Go to the restaurant editing menu by clicking on the gear . The restaurant card will open.
Make sure the Connected Systems section is blue and the enabled agent for RKMid is selected
Go to the Order Creation Parameters menu
Click the Update directories button to download the parameters from the cash register server.
The necessary settings for connecting to Delivery will be filled in automatically. Detailed descriptions of the parameters are in the table below:
- Cashier ID
- Table ID
- Cash register ID
- Order type code
- Order category code
- In the Optional parameters block:
  - Select Order Currency. Specify the currency used for online payments.
  - Menu Selector Code — Leave empty
  - Please indicate the Reason for order cancellation
  - In the Order confirmation time in seconds field, enter 0
  - Enable the Create unconfirmed order setting
  - Turn off the Create order as draft setting

    Attention!
    If you skip the Optional parameters setting, r_k Delivery may not work correctly.
- Save the changes by clicking the Save button
The new settings will be applied to the agent with the RkMid role.

Description of parameters

Parameter	Default value	Description
Parameter	Default value	Description
Cashier	Cashier #1	The cashier through which delivery orders will be processed
Table for orders	Стол #1	The r_keeper code of the table for which the order will be created.
Cash register	Cash register #1	The r_keeper identifier of the cash register where: the order will be created, the receipt will be printed, the order will be paid for and closed.
Order type		Order type. r_k Delivery does not use this parameter, but it is required for the agent to work.
Order category		Order category. r_k Delivery does not use this parameter, but it is required for the agent to work.
Order currency	Rubles	The currency in which online orders will be paid (rubles are used by default).
Reason for order cancellation	Waiter's mistake without writing off	Reason for canceling dishes in r_keeper
Order confirmation time in seconds	0	It is better to use the default value. In this case, the confirmation form will not appear at the cash register
Name of the node with the order confirmation form	127.0.0.1	The IP address where the Agent's website with the order confirmation form is deployed.
Create an unconfirmed order	Yes	To create or not to create an order not confirmed at the cash register
Create order as draft	No	Whether or not to create an order as a draft
ExtSource Code	42

View logs

On the tasks tab, in the restaurant card, you will see a list of tasks that were received at the object from different systems.
For delivery, the AggregatorId value is always 199990357.
